BusBoard Prototype Systems Best Sellers

Last Updated: Jan 12, 2025

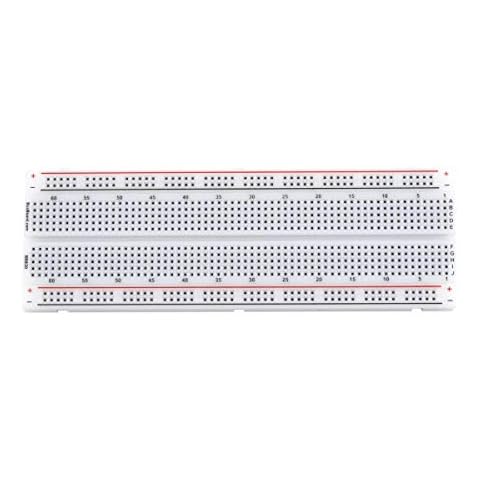

BB830 Solderless Plug-in BreadBoard, 830 tie-Points, 4 Power Rails, 6.5 x 2.2 x 0.3in (165 x 55 x 9mm)

Prototyping Boards

Buy on Amazon Find on eBay

830 tie points total: 630 tie-point IC-circuit area plus two 100 tie-point distribution strips providing 4 power rails.

White ABS plastic body with black printed legend. Color legend on distribution strips.

Contacts are Phosphor Bronze with Plated Nickel Finish, rated for 50,000 insertions. Rated at 36 Volts, 2 Amps.

Insertion Wire Size is 21 to 26 AWG, 0.016 to 0.028 inches diameter (0.4 to 0.7mm diameter)

Size: 6.5 x 2.2 x 0.3in (165.1 x 54.6 x 8.5mm) Peelable adhesive tape backing provided for attaching to a surface. Metal back plate provided.

BB400 Solderless Plug-in BreadBoard, 400 tie-Points, 4 Power Rails, 3.3 x 2.2 x 0.3in (84 x 55 x 9mm)

Prototyping Boards

Buy on Amazon Find on eBay

400 tie points total: 300 tie-point IC-circuit area plus two 50 tie-point distribution strips providing 4 power rails.

White ABS plastic body with black printed legend. Color legend on distribution strips.

Contacts are Phosphor Bronze with Plated Nickel Finish, rated for 50,000 insertions. Rated at 36 Volts, 2 Amps.

Insertion Wire Size is 21 to 26 AWG, 0.016 to 0.028 inches diameter (0.4 to 0.7mm diameter)

Size: 3.3 x 2.1 x 0.3in (84 x 54.3 x 8.5mm). Peelable adhesive tape backing provided for attaching to a surface.

Busboard Prototype Systems BB1660 1660 Point Solderless Plug-in Breadboard with 8 Power Rails

Prototyping Boards

Buy on Amazon Find on eBay

Contact Points: 1660

Terminal Strips: 2

Hole Spacing: 0.1 in.

Packages Supported: DIP

Additional Feature: N/A

BusBoard Prototype Systems BreadBoard + ZipWire Kit, BB830 Solderless Plug-in BreadBoard Plus ZW-MM-10 ZipWires (40x 10cm Wires)

Prototyping Boards

Buy on Amazon Find on eBay

BB830 solderless breadboard plus 40 unzippable male-male jumper wires, 10cm each.

ZipWire multi-color ribbon of 40 wires, 28 AWG, with male-male connectors. Length = 10cm. Unzippable as single wires or groups. 10 rainbow standard electrical colors.

BreadBoard has 830 tie points total: 630 tie-point IC-circuit area plus two 100 tie-point distribution strips providing 4 power rails. Peelable adhesive tape backing provided for attaching to a surface. Metal back plate provided.

White ABS plastic body with black printed legend. Color legend on distribution strips. Contacts are Phosphor Bronze with Plated Nickel Finish, rated for 50,000 insertions, 36 Volts, 2 Amps.

BreadBoard Size: 6.5 x 2.2 x 0.3in (165.1 x 54.6 x 8.5mm). ZipWire Size: 40wires, 4in (100mm).

BusBoard Prototype Systems BB1660T Transparent Solderless Plug-in BreadBoard, 1660 tie-Points, 8 Power Rails, 6.5 x 4.4 x 0.3in (165 x 110 x 9mm)

Prototyping Boards

Buy on Amazon Find on eBay

1660 tie points total: 1660 tie-point IC-circuit area plus four 100 tie-point distribution strips providing 8 power rails.

Transparent ABS plastic body with black printed legend. Color legend on distribution strips.

Contacts are Phosphor Bronze with Plated Nickel Finish, rated for 50,000 insertions. Rated at 36 Volts, 2 Amps.

Insertion Wire Size is 21 to 26 AWG, 0.016 to 0.028 inches diameter (0.4 to 0.7mm diameter)

Size: 6.5 x 4.4 x 0.3in (165.1 x 109.2 x 8.5mm). Peelable adhesive tape backing provided for attaching to a surface. Metal back plates provided.

BusBoard 2125026 Transparent Solderless Plug-in BreadBoard, 830 Tie-Points, 4 Power Rails, 6.5" Length, 2.2" Width, 0.3" Height

Prototyping Boards

Buy on Amazon Find on eBay

830 Tie points total: 630 tie-points ic-circuit area Plus two 100 tie-points distribution strips providing 4 power rails

White ABS plastic body with black printed legend. Color legend on distribution strips

Contacts are Phosphor bronze with plated Nickel finish, rated for 50,000 insertion

Rated at 36 Volts, 2 amps

Insertion wire Size is 21 to 26 AWG, 0.016 to 0.028 inches diameter (0.4 to 0.7mm diameter)

BB1460 Solderless Plug-in BreadBoard, 1460 tie-Points, 4 Power Rails, 6.5 x 3.5 x 0.3in (165 x 89 x 9mm)

Prototyping Boards

Buy on Amazon Find on eBay

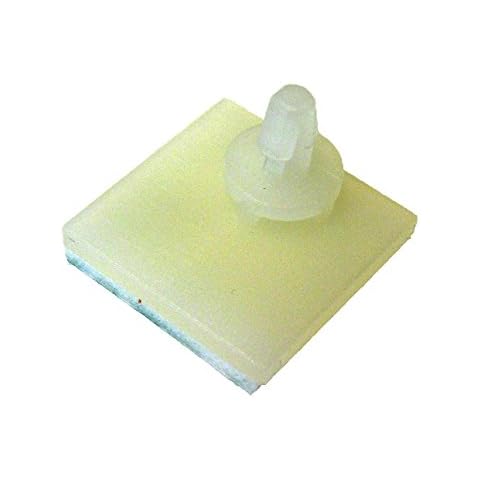

BusBoard Prototype Systems SA180 Adhesive Standoffs, 24 Pack, 0.180" Height, Offset 0.6x0.6 Base, Fits 0.125" PCB Hole

Hardware Spacers

Buy on Amazon Find on eBay

Low profile 0.180” standoff height.

Offset base allows use when holes are close to the PCB edge. 0.6 x 0.6” base size.

For use with 1/16” and 1/32” thick PCBs with 0.125” (1/8”) diameter PCB holes. Expanding tabs lock PCB in place.

Material: Nylon 66(UI) Flame Class: 94V-2

3M Adhesive Tape Backing.

BusBoard Prototype Systems KIT-1593L Box+PCB, Black ABS Plastic Box, with PR1593L PCB, Box = 3.6 x 2.6 x 1.1 in

Prototyping Boards

Buy on Amazon Find on eBay

Box is black ABS plastic, secured with self tapping screws (included). 2 sets of removable end panels.

Box Size 2.6 x 2.6 x 1.1 in. (66 x 66 x 28 mm)

Single-sided high-quality FR4 glass-epoxy circuit board, 1oz/ft2 copper with an anti-tarnish coating for easy soldering. Lead free and RoHS compatible.

0.042" holes are drilled on 0.1" (2.54mm) centers. 4 mounting holes. Screws provided.

PCB Size 3.28 x 2.26 in (83.3 x 57.4 mm)

Busboard Prototype Systems SB404 Solderable Prototyping Board 540 Hole 400-point Breadboard Pattern

Prototyping Boards

Buy on Amazon Find on eBay

Product Type: Solderable Breadboard

Plating: Epoxy Glass

Pitch: 0.1 in., 2.54 mm

No. Of Holes: 628

Hole Size: 0.042 in.

ST1 (Two-Pack) StripBoard, Uncut Strips, 1 Sided PCB, Size 1 = 50 x 80mm (1.97 x 3.15in)

Prototyping Boards

Buy on Amazon Find on eBay

Package of two ST1 prototyping boards.

Standard stripboard pattern, with tracks running the length of the board.

Single-sided high-quality FR4 glass-epoxy circuit board.

1oz/ft2 copper with an anti-tarnish coating for easy soldering. Lead free and RoHS compatible.

31 x 19 holes (19 strips), 0.037" holes are drilled on 0.1" (2.54mm) centers. Four 0.125” mounting holes. Size 1 = 50 x 80mm (1.97 x 3.15in), 1/16" thick (1.6mm)

BusBoard Prototype Systems SB4 (Two Pack) Snappable PC BreadBoard, Scored PCB, Snaps Into 4 Small Boards, 2-Layer, Plated Holes, Power Rails, 2.5 x 3.8in (63.5 x 96.5mm)

Prototyping Boards

Buy on Amazon Find on eBay

Package of two SB4 prototyping boards. Solderable PC breadboard, snappable into 4 smaller boards. Each smaller board has power rails.

Snaps into 4 smaller boards for tiny projects. Two with 4-hole strips and two with 2-hole strips.

Top side silkscreen shows which pads are connected. Soldermask provided. Double-sided high-quality FR4 glass-epoxy circuit board. Plated holes.

912 plated holes, 0.042" holes are drilled on 0.1" (2.54mm) centers. 1oz/ft2 copper with an anti-tarnish coating for easy soldering. Lead free and RoHS compatible.

2.5 x 3.8in (63.5 x 96.5mm), 1/16" thick (1.6mm)

BusBoard Prototype Systems SMT3UT SMTboard-3U-Thin, 2 Sided PCB, Unplated Holes to Ground Plane, 3.94 x 6.30 in (100 x 160 mm)

Prototyping Boards

Buy on Amazon Find on eBay

Double-sided high-quality FR4 glass-epoxy circuit board with unplated holes.

0.1" x 0.2 rectangular SMT pads for surface mount components. Three SOIC-32 footprints.

1oz/ft2 copper with an anti-tarnish coating for easy soldering. Lead free and RoHS compatible.

0.031" (0.79mm) holes (unplated) for connections to ground plane in SMT area. 0.037" (0.94mm) holes (unplated) for ICs or square post headers in through hole area.

Standard single height (3U) Eurocard/VME size. 3.9" wide, 6.3" long, 1/32" thick (100 x 160 x 0.8mm). Off-the-shelf 3U size enclosures are available.

ST3U StripBoard-3U, Uncut Strips, 1 Sided PCB, 3.94 x 6.30 in (100 x 160 mm)

Prototyping Boards

Buy on Amazon Find on eBay

Standard stripboard pattern, with tracks running the length of the board.

Single-sided high-quality FR4 glass-epoxy circuit board.

1oz/ft2 copper with an anti-tarnish coating for easy soldering. Lead free and RoHS compatible.

38 x 62 holes (38 strips), 0.037" holes are drilled on 0.1" (2.54mm) centers.

Standard single height (3U) Eurocard/VME size. 3.9" wide, 6.3" long, 1/16" thick (100 x 160 x 1.6mm). Off-the-shelf 3U size enclosures are available.

BusBoard Prototype Systems SP3UT SMTpads-3U-Thin, 2 Sided PCB, Unplated Holes to Ground Plane, 3.94 x 6.30 in (100 x 160 mm)

Prototyping Boards

Buy on Amazon Find on eBay

Double-sided high-quality FR4 glass-epoxy circuit board with unplated holes.

square SMT pads on 0.050" centers for surface mount components.

1oz/ft2 copper with an anti-tarnish coating for easy soldering. Lead free and RoHS compatible.

0.031" (0.79mm) holes (unplated) for connections to ground plane.

Standard single height (3U) Eurocard/VME size. 3.9" wide, 6.3" long, 1/32" thick (100 x 160 x 0.8mm). Off-the-shelf 3U size enclosures are available.

KIT-1593K Box+PCB, Black ABS Plastic Box, with PR1593K PCB, Box = 2.6 x 2.6 x 1.1 in

Electrical Boxes

Buy on Amazon Find on eBay

Box is black ABS plastic, secured with self tapping screws (included). 2 sets of removable end panels.

Box Size 2.6 x 2.6 x 1.1 in. (66 x 66 x 28 mm)

Single-sided high-quality FR4 glass-epoxy circuit board, 1oz/ft2 copper with an anti-tarnish coating for easy soldering. Lead free and RoHS compatible.

0.042" holes are drilled on 0.1" (2.54mm) centers. 2 mounting holes. Screws provided.

PCB Size 2.30 x 2.26 in (58.4 x 57.4 mm)

POW3U PowerBoard-3U with Power Rails, 1 Sided PCB, 3.94 x 6.30 in (100 x 160 mm)

Prototyping Boards

Buy on Amazon Find on eBay

6 hole strips with interleaved power and ground rail tracks.

Single-sided high-quality FR4 glass-epoxy circuit board.

1oz/ft2 copper with an anti-tarnish coating for easy soldering. Lead free and RoHS compatible.

38 x 62 holes, 0.037" holes are drilled on 0.1" (2.54mm) centers.

Standard single height (3U) Eurocard/VME size. 3.9" wide, 6.3" long, 1/16" thick (100 x 160 x 1.6mm). Off-the-shelf 3U size enclosures are available.
