CNCTOPBAOS Best Sellers

Last Updated: Jan 12, 2025

CNCTOPBAOS CNC 3018-PRO-MAX 3 Axis Desktop DIY Mini Wood Router Kit PCB PVC Milling Engraver Engraving Carving Machine GRBL Control with offline controller Hand Control (w/Offline Controller)

Buy on Amazon Find on eBay

Upgrade Version CNC3018-PRO-MAX with offline controller: Mini CNC machine small size, light weight, USB interface, GRBL control systems, great cnc router machine for beginners; You can operate this machine without connect the computer; Offline controller included a SD card reader to write into the root directory G-code files or NC file; Support manually adjust X, Y, Z axis location as engraving starting point,manually open or close spindle

Working area: 30x18x4.5cm / 11.8 x 7.1 x 1.8 inches;Frame size: 42x35x27cm / 16.53 x 13.78 x 10.63 inches;Type:USB port Desktop cnc router; System requirements: Windows XP / Win 7 / Win 8 / Win 10 / Linux; Supporting files:G-code .nc/.txt/.tape/.gcode

Spindle Motor: 775 120W spindle motor DC12-36V, 24V is 10000r/min; Collet: with ER11 3.175mm collet,also can be equipped with 0-7mm size; Stepper Motor: Nema17 42 stepper motor 1.33A/0.3N.m/43oz-in/42x42x34 mm

Application: Can be engraved plastic, wood, acrylic, pvc, pcb, wood and the like material.soft metal like copper and aluminum and other materials; If you have the engraver module,you also can change the spindle to a 3-pin PWM engraver module,then also can engrave on kraft paper, wood, leather etc

GRBL Software: Our parcel include a 4G USB flash drive,it include the installation instructions,user manual and GRBL software; Upgraded GRBL1.1 Control Board: Added the outer casing,E-stop button port,probe port,X/Y/Z axis limit port and add the power button switch,with the fan,enhanced spindle drive,can support max 20000rpm spindle,and also can support 12V 3-PIN PWM/TTL 0.5W-20W engraver module

Read more Read less

CNCTOPBAOS Upgrade CNC 3018-PRO 3 Axis DIY Mini CNC Router Kit with GRBL Remote Control Offline Controller PVC PCB Acrylic Plastic Wood Cutting Engraving Carving Milling Machine

Milling Machines

Buy on Amazon Find on eBay

Model: Upgrade Version 3018-PRO with Offline Controller; Mini CNC machine small size, light weight, USB interface, GRBL control systems, great cnc router machine for beginers; You can operate this machine without connect to the computer; offline controller included a SD card reader to write into the root directory G-code files or NC file; Support manually adjust X, Y, Z axis location as engraving starting point,manually open or close spindle

Working area:300x180x45 mm / 11.8 x 7.1 x 1.8";Frame size: 420x350x270mm / 16.53x13.78x10.63"; Type: USB Port Desktop cnc router ; Spindle: 775 spindle motor 120W 12-36V,10000rpm/24V; Motor: Nema17 Stepper Motor 1.33A,42x42x34mm,0.3N.m,43 oz-in

Upgraded GRBL1.1f Control Board: Added the outer casing,E-stop button port,tool setting probe port,X/Y/Z axis limit port and add the power button switch,and come with the fan port to force heat dissipation,with enhanced spindle drive,can support max 20000rpm spindle,and also can support 12V 3-PIN 0.5W-20W engraver module

Main application: Can be engraved plastic, wood, acrylic, pvc, pcb, wood and the like material.and soft metal like copper and aluminum and other materials; Supporting files: G-code nc/txt/tape/gcode

GRBL Software: Our parcel include 4G USB flash drive,pls download the installation instructions,user manual and GRBL software from the USB flash drive; System requirements: Windows XP SP3,Win 7,Win 8,Win 10 32/64 can be and Linux

Read more Read less

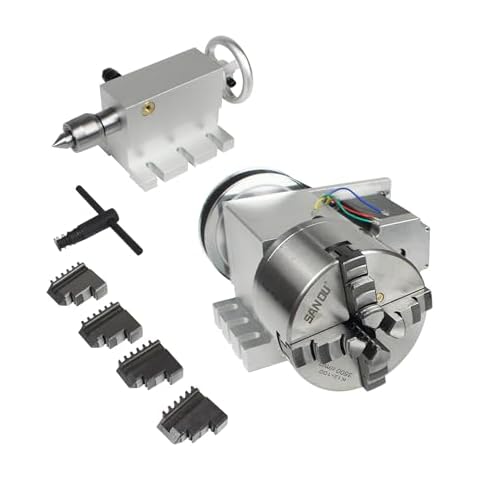

CNCTOPBAOS K12-100mm CNC Router Milling Machine Rotational Axis 4th Axis A axis Rotary Table A axis 100mm 4 jaw chuck dividing head,MT2 65mm Tailstock Reducing ratio 6:1 for CNC Engraving Machine

Milling Machines

Buy on Amazon Find on eBay

Specifications of 4th Axis: Center height: 65 mm/2.56 inch; Total height:; 115 mm/4.5 inch; Angle: 0.3°/step ; Reduction ratio: 6:1; Base Material: Aluminum alloy; Size: 210x168x115 mm/8.3x6.6x4.5 inch; Weight: 7.9 KG/17.4 LB; Inner through hole diameter/shaft hollow diameter is 22 mm/0.86 inch; Output shaft diameter:30 mm/1.18 inch

Nema23 Stepper Motor: Phase: 2 Phase; Type: Hybrid; Step Angle: 1.8°; Current: 3.0A; Holding torque: 270oz-in/1.8Nm; Shat diameter: 8mm; 4 Lead Wires: A+ to Red ; A- to Green ; B+ to Yellow ; B- to Blue; Motor Size: 57x57x76 mm

Specifications of MT2 Tailstock: Morse Taper 2 Live Center Movable MT2 Tailstock; Center Height: 65 mm/2.56 inch; Expansion stroke: 45 mm1.77 inch; Stretch distance: 50 mm/1.97 inch; Top tip: Activity type; With Axial locking wrench for tailstock; Exquisite workmanship,Durable,Stable performance,Sturdy and Wear-resistant; Weight: 2.5 KG/5.5 LB

Chuck Type: K12-100 4-Jaw self-centering chuck; Diameter:100mm; Max input torque: 60 N.m; Max Speed: 3500 R/min; External jaw clamping range: 30-80 mm/1.18-3.15 inches.; Internal jaw clamping range: 2-30 mm/0.08-1.18 inches; Internal jaw jamming range: 30-90 mm/1.18-3.54 inches; With four Anti-claw and Wrench

Advantages: Rust proof coating process,stable 4 jaw chuck structure,fine workmanship,solid and practical jaw, excellent process to maximize service life;Application: The fourth axis can be used for three-dimensional processing of cylinders, bends and circles. The fourth axis engraving machine can be used for engraving spirals, scars etc

Read more Read less

CNCTOPBAOS 4 Axis Offline Stand Alone CNC Motion Controller System DDCSV3.1,Servo/Stepper Motor Control Replace Mach3 PLC+100PPR MPG Handwheel with E-Stop for CNC Router Engraving Machine

Electrical Motor Controls

Buy on Amazon Find on eBay

Brief introduction: The DDCSV3.1 is a 4 axis motion controller,the highest output pulse per axis is 500KHz;This provides high control precision for stepper motors and servo motors;The DDCS operates as a stand alone system without the need of a computer,and it needs two 24V DC power supplies

Specifications: 5 inches TFT Screen; Resolution ratio: 480x272; The highest output pulse per axis is 500KHz,this provides high control precision for stepper motors and servo motors; All operations are controlled by only 17 keys and it supports the FANUC with high universality to be compatible with G code set,with 4G USB flash disk support for G code file input,no size limited of the G-code file

Brief technical features: 16 photoelectric isolated digital inputs,3 photoelectric isolated digital outputs; Analog spindle control 0-10V spindle control,can be modified as PWM output; ARM9 main control chip,FPGA core algorithm chip ;Jog function for each axis,continuous, step, defined distance; Customer can define the distance; Support NPN type limited switch

4 Axis MPG Handwheel: Resolution:100 PPR ; X,Y,Z,4th axis selector switch ; Switch:x1,x10,x100,with Emergency stop and LED indicator; This MPG comes with a 15-pin plug, which can be directly connected to the 15-pin socket of the controller MPG

Applications: The DDCV3.1 controller can be used for many styles and types of CNC machines, Lathes, CNC Router, Milling Machine,Engraving Machine and Cutters are just a few examples

Read more Read less

CNC Rotary Axis 4th Axis with 3 Jaw Chuck,CNCTOPBAOS K11-80mm Hollow Shaft Dividing Head Rotational A Axis w/ 65mm Tailstock Reducing Ratio:6:1 for CNC Router Engraving Lathe Milling Machine

Power Lathes

Buy on Amazon Find on eBay

Specifications of 4th Axis: Center height: 65mm/2.56"; Total height: 115mm/4.5"; Angle: 0.3°/step ; Reduction ratio: 6:1; Base Material: Made of Aluminum alloy; Size: 210x168x115mm/8.3x6.6x4.5"; Weight: 6.3KG/13.88 LB; Inner through hole diameter/shaft hollow diameter is 16mm/0.63"

Nema23 Stepper Motor: Phase: 2 Phase; Type: Hybrid; Step Angle: 1.8°; Current: 3.0A; Holding torque: 270oz-in/1.8Nm; Shat diameter: 8mm; 4 Lead Wires: "A+"=Red / "A-"=Green / "B+"=Yellow / "B-"=Blue; Motor Size: 57x57x76mm

Specifications of MT2 Tailstock: Morse Taper 2 Live Center Movable MT2 Tailstock; Center Height: 65mm/2.56"; Expansion stroke: 45mm/1.77"; Stretch distance: 50mm/1.97"; Top tip: Activity type; With Axial locking wrench for tailstock; Exquisite workmanship,Durable,Stable performance,Sturdy and Wear-resistant; Weight: 2.5KG/5.5 LB

80mm 3 Jaw Chuck: K11-80 3-Jaw self-centering chuck; Diameter:80mm; Max input torque: 40N.m; Max Speed: 4000R/min; External jaw clamping range: 22-63mm/0.86-1.16"; Internal jaw clamping range: 2-22mm/0.07-0.86"; Internal jaw jamming range: 25-70mm/0.98-2.75"; With 3 Anti-claw and Wrench

Advantages: Rust proof coating process,stable 3 jaw chuck structure,fine workmanship,solid and practical jaw, excellent process to maximize service life

Application: The fourth axis can be used for three-dimensional processing of cylinders, bends and circles. The fourth axis engraving machine can be used for engraving spirals, scars etc

Read more Read less

CNCTOPBAOS 1610 PRO Mini CNC Router Kit,3 Axis Desktop GRBL Control DIY Engraver Engraving Machine,Carving Engrave on Acrylic,PVC,PCB,Plastic,Wood Cutting Milling Machine

Milling Machines

Buy on Amazon Find on eBay

Model: Upgrade Version 1610 Pro; Mini CNC machine small size, light weight, USB interface, GRBL control systems, great cnc router machine for beginers;The CNC1610 PRO machine is very easy to install,stable structure

Working area: 7.08x3.93x1.77 inches/18x10x4.5cm ; Frame size: 11.81x10.23x9.84 inches/30x26x25cm; Type:USB port Desktop cnc router; Spindle: Dia 45mm 10000rpm max power 120W; ER11-3.175mm can be replaced 0-7mm collet; Nema17 42 stepper motor 1.3A/0.3N.m/42x42x34mm

Upgraded GRBL1.1f Control Board: Added the outer casing,emergency stop button port,tool setting/probe port,X/Y/Z axis limit port and add the power button switch,and come with the fan port to force heat dissipation,with enhanced spindle drive,can support max 20000rpm spindle,and also can support 12V 3-PIN 0.5W-20W engraver module

Supporting files:G-code nc/txt/tape/gcode; Main application: Can be engraved plastic, wood, acrylic, pvc, pcb, wood and the like material,and soft metal like copper and aluminum and other materials etc

Read more Read less

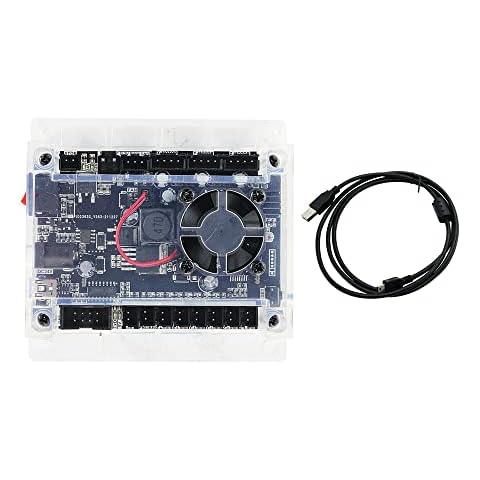

CNCTOPBAOS 3 Axis GRBL 1.1f USB Port CNC Engraving Machine Control Board CNC Router Engraver Milling Machine Controller Board

Milling Machines

Buy on Amazon Find on eBay

Model: Upgraded 3 Axis GRBL 1.1F USB Port GRBL Control Board; Input voltage: 24VDC

Support software: GRBL Contol/Candle(3 axis)/Universal Gcode Sender; Support System: Windows XP/7/8/10

Support Motor: Support XYZ three-axis control, spindle.Support stepper motor: 12V, maximum current of 2A or less is recommended within 1.5A and additional heat. (Any stepper motor Nema17,Nema23);Support spindle: Support 24VDC Spindle PWM speed 0%-100%,also support 3-pin PWM/TTL signal control module

New functions: Add 2-pin emergency stop button port,probe port,XYZ limit port and add the power button switch

Applications: The control board can be used with the 1310,1610-PRO, 3018,3018-PRO and 3018-PRO MAX etc engraving machines

Read more Read less

CNCTOPBAOS 2 in 1 CNC 3018-PRO Engraver Machine,DIY Mini CNC Router Kit Cutting Milling Engraving on Acrylic PVC PCB Wood with Offline GRBL Controller,Limit Switches,E-Stop

Milling Machines

Buy on Amazon Find on eBay

Type: Upgraded CNC 3018-PRO with 5.5 W Module; We have added E-Stop button and XYZ limit switches; The two sides of the Y-axis have been replaced by orange electric wood resin boards,the sturdy outer frame is made of resin,the workbench is made of aluminum alloy,and the screw material is made of stainless steel,making the machine more lightweight,delicate and durable,and is highly favored by CNC beginners and enthusiasts

With offline controller: You can operate this machine without connect to the computer; offline controller included a SD card reader to write into the root directory G-code files or NC file; Support manually adjust X, Y, Z axis location as engraving starting point,manually open or close spindle

Parameters: Working area: 300x180x45 mm / 11.8 x 7.1 x 1.8 inches;Frame size: 420x350x270 mm / 16.53x13.78x10.63 inches; Spindle: 775 spindle motor 120W 12-36V,24V is 10000 rpm; Stepper Motor: Nema17 stepper motor 1.33A,42x42x34 mm,0.3N.m,43 oz-in; Engraver Module: 5.5 W 12V PWM/TTL 3-pin engraver module

Widely Applications: Can be engraved plastic, leather, acrylic, pvc, pcb, wood and the like material,also can work on soft metal like copper,brass,aluminum and other similar metal materials; If you use the 10W engraver module,then you can also use it to carve the kraft paper, wood, leather and rubber etc

Read more Read less

CNCTOPBAOS 3 Axis CNC 4540 2 in 1 CNC Router Engraver Machine,40W Module&500W Spindle Carving Milling Cutting Stainless Steel,Aluminum,Acrylic,MDF,Wood,Metal w/Offline Controller/Limit Switch/E-Stop

Milling Machines

Buy on Amazon Find on eBay

High Speed 500W Spindle: The 4540 cnc engraving machine is equipped with 500W 48V 11000rpm spindle with ER11 collet,which is more powerful and efficient,and can do a variety of drilling and carving operations on various materials such as big wood,can cut stainless steel,aluminum and other metals;Max.Movement Speed:5000mm/min;Speed range:0-11000rpm

Larger Engraving range: Large MDF working table;Working area:430x390x90mm/16.93x15.39x3.54 inches;Overall Size:650x532x320mm/25.59x20.94x12.60 inches;The worktable has an accurate scale line,which is convenient to locate and measure the size of the engraving material

40W Engraving Module: Compressed spot 40W ; Engraving accuracy: 0.01mm ; Optical power: 10w; Cutting depth: 0.11"-0.3.14"/3-8mm; Wavelength: 450±5nm; Input: DC 12V 3A; Adopting optical compression technology,with small light spot,good optical quality,high-speed engraving, good heat dissipation,and long service life

Supported Software&Computer Systems: 4540 CNC engraving machine is compatible with GRBL software/Candle and supports Windows XP/7/8/10 and Mac OS.The GRBL Control Software in our package supports Nc, Ncc, Ngc, Tag and other G files

Wide Application: Can engrave on Stainless steel,Wood, MDF, Carbon fiber, PCB, PVC, Leather, Paper, Acrylic, Resin, Ceramic products, Food, Bamboo, Plastic, Nylon, Plywood, Brass, Plexiglass, Aluminum and so on.This machine can both carve and cut.It can cut 8-12mm/0.31"-0.47" MDF and 5mm/0.19" thick aluminum

Read more Read less

CNCTOPBAOS Reciprocating Linear Actuator Stroke 6 Inch 1.18"-6",Adjustable Telescopic Rocker Arm Mechanism Gear Motor DC24V Speed Regulation Adapter 120RPM 3-15CM

Linear Motion Actuators

Buy on Amazon Find on eBay

Reciprocating Linear Actuator: The reciprocating mechanism includes a geared motor,an adjustable speed power supply,and a reciprocating mechanism.The device is already installed,plug and play.Input voltage: AC100-240V,50Hz/60Hz; Working voltage: DC24V

Infinitely adjustment of stroke: Working voltage: DC 24V; Stroke range: 3-15cm/1.2"-6" and within this range,the telescopic stroke can be infinitely adjusted

Speed and Thrust: Max speed: 120rpm; This means that at 24V voltage,the fastest stretching speed can be 120 times per minute; Thrust: 2-17kg/4.4lb-37lb.The push-pull force is mainly powered by the motor.The smaller the stroke,the greater the thrust

High quality materials: Aluminum alloy material,compact structure design;Chromium plated telescopic tube with high stiffness, high hardness, and good bending resistance, equipped with high wear-resistant bearings, durable, high-strength and large torque range swing arm, high tensile strength, wide adjustable range of telescopic stroke, strong motor horsepower, providing stability

DC gear motor: 24VDC,adjustable speed of up to 120 revolutions per minute,maximum torque of 25kg/cm,hole spacing of 50x50mm,shaft diameter of 8mm,weight of 0.5kg/1.1lb, rated current of 0.6A,length and width of 60x102mm/2.36 "x4"; Adopting high-quality pure copper wire motor and integrated heat treatment gearbox, with low heat generation, sufficient power, multi-level reduction, metal gears, greater strength, and longer lifespan

Read more Read less

CNCTOPBAOS 3 Axis 3018 CNC Router with GRBL Offline Controller,DIY Mini Desktop Engraver Machine,Carving Aluminum Acrylic PCB PVC Milling Cutting Wood Engraving Machine

Jewelry Making Engraving Machines & Tools

Buy on Amazon Find on eBay

Model:3018; Working area: 11.8x7.1x1.8" / 30x18x4.5cm; Frame size: 15.7x12.9x9.44" / 40x33x24cm; Port:USB port; Support System: Windows XP/Win 7/8/10/Linux; 4G USB flash drive include english user manual and GRBL software

Upgraded GRBL1.1 Control Board: Added the outer shell,E-stop port,probe port,limit port,power button switch,comes with the fan,enhanced spindle drive,can support max 20000rpm spindle,and can support 12V 3-PIN 0.5W-20W 3.0A max engraver module

Spindle Motor: 775 100W spindle motor (24-36V) DC24V:10000 r/min; Collet: ER11 3.175mm (Can be equipped with 0-7mm); Stepper Motor: Nema17 stepper motor 1.33A/0.3N.m/43Oz-in/42x42x34 mm;Software:GRBL Control; Supporting files:G-code .nc/.txt/.tape/.gcode

With GRBL Offline Controller: Support SD card and TF card at the same time, standard capacity 1G; With this offline controller,you can directly control the machine without connecting it to your computer

Application: Can be engraved plastic, wood, acrylic, pvc, pcb, wood and the like material,also soft metal like copper and aluminum and other materials; If you have the 3-PIN engraver module,you also can change the spindle to the engraver module,then also can carve on kraft paper, wood and leather etc

Read more Read less

CNCTOPBAOS 4540 CNC Router Machine w/GRBL Offline Controller,500W Spindle 11000rpm,3 Axis Milling Engraving Wood Cutting Carving Engraver Machine For Metal Acrylic MDF Nylon Plastic 16.9x5.4x3.5inch

Milling Machines

Buy on Amazon Find on eBay

White offline controller: Support SD card and TF card at the same time,standard capacity 1G.With this offline controller module, you can directly control the CNC router without connecting it to your computer. After inserting the file into the SD card,the engraving file can be directly identified. You can also use the micro USB cable to connect the offline hand controller board to your computer and save the file directly

Supported Software&Computer Systems: 4540 CNC engraving machine is compatible with GRBL software/Candle and supports Windows XP/7/8/10; The GRBL Control Software in our package supports Nc, Ncc, Ngc, Tag and other G files

Wide Application: Can engrave on Stainless steel,Wood, MDF, Carbon fiber, PCB, PVC, Leather, Paper, Acrylic, Resin, Ceramic products, Food, Plastic, Nylon, Plywood, Brass, Plexiglass, Aluminum and so on.This machine can both carve and cut.It can cut 8-12mm/0.31"-0.47" MDF and 5mm/0.19" thick aluminum

Easy to Assemble: The main components has been pre-assembled and can be simply assembled in 15-30 minutes.The machine is comes with 10pcs End Mill Bits/Limit switches/Probe.The control board,power supply,Estop,fixed heat sink and wires are integrated into a newly designed box for easy and safe operation

Read more Read less

CNCTOPBAOS 3 Axis GRBL Control Board USB Port CNC Router Controller Board grbl 1.1f with GRBL Offline Controller Remote Hand Control for CNC Engraving Milling Machine Mini DIY 1610 CNC 3018-PRO

Milling Machines

Buy on Amazon Find on eBay

Model: Upgraded 3 Axis GRBL 1.1F Control Board with Offline controller; Input voltage: 24VDC;Applications: The control board can be used with the 1310,1610-PRO, 3018,3018-PRO and 3018-PRO-MAX etc engraving machine or other GRBL Control CNC Router Machine

Features: Add emergency stop button port,probe port and XYZ limit switches port; Add the power button switch; Used integrated imported stepper motor drive;Enhanced spindle drive,can support max. 20000rpm spindle

Support software: GRBL Contol/Candle/Universal Gcode Sender; Support Computer System: Windows XP/7/8/10;The terminal of stepper motor,limit switch,tool setting and emergency stop button are 2-pin 2.54mm pitch,spindle is 2-pin port VH3.96mm pitch

Stepper Motor: Support XYZ three-axis Nema17 or Nema23 stepper motor, motor's Max. Current of 2A or less is recommended within 1.5A; Spindle: Support 24V DC Spindle PWM speed 0%-100%,also support 12V 3-pin PWM/TTL Max. 3.0A engraving module

Offline Controller:It supports SD card and TF card at the same time,standard capacity 1G, notebooks generally have SD card interface, copy files are very convenient,you can control the machine without computer

Read more Read less

CNCTOPBAOS 7.5KW BT30 Automatic Tool Change ATC Air Cooled Spindle Motor 220V 24000rpm 800Hz 4 Pole with 7.5KW VFD Inverter CNC Kit for CNC Router Milling Engraving Machine w/ BT30-ER25 Tool Holder

Power Spindle Sanders

Buy on Amazon Find on eBay

Parameters of Spindle: Model Number: RTM120x103-30-24/7.5; Power: 7.5KW; Voltage: 220V; Maximum Torque: 7.2N.m; Rated torque: 6N.m; Rated Speed: 12000RPM; Max Speed: 24000RPM; Max. Frequency: 800Hz; Bearing: 4 bearings(2x7008 nd 2x7006); Nose: BT30; Motor pole: 4 Pole; Current: 12A; Defend grade: IP53; Insulation grade: F

Parameters of VFD: 7.5KW Fuling VFD Inverter 220V; Input Phase: 1 phase or 3 phase; Input Frequency: 50-60Hz (±5Hz); Output Voltage: 220V; Output Phase: 3 phase; Output Current: 31A; Output Frequency: 0-1000Hz; Control Method: V/F control

Advantages of Spindle: This spindle is built-in type spindle motor, built-in three asynchronous motors,as the spindle has a compact structure,high power, big torque, small vibration, low noise characteristics,so it can achieve high speed,high powe cutting,high recision and high stability operation.The bearing of spindle use grease lubricated angular to contact bearings

Multi functional of the VFD: 8-stage simple PLC function, multi-speed control and PID control;Support multiple frequency settings:digital setting, analog setting, PID setting, RS485 communication setting;I/O terminals can be programmed;With over torque and under torque detection;Automatic voltage adjustment function;Over-current,over-voltage, under-voltage, over-heat, overload, lack of equal real-time monitoring

User manual: The spindle and VFD will be sent out after testing,and we will provide the PDF user manual of the spindle and VFD,pls notice all parameters of the VFD are pre-set before leaving the factory,so you can directly use it to run the spindle,no need to set up the VFD

Read more Read less

CNCTOPBAOS MMP25 3D Light Edge Finder with Ceramic Probe,to Find CNC Milling Lathe Machining Center,Accuracy 0.001mm X,Y,Z Axis Three Coordinate Measurement Centering Rod Touch Probe Tool Dividing Rod

Lathe Turning Tools

Buy on Amazon Find on eBay

Product: The 3D edge finder supports X,Y,Z three-coordinate direction measurement,reciprocating positioning accuracy ≤ 0.001mm; Probe direction: +-X +-Y +Z; Probe safety stroke: X.Y plane +-15°; Z direction +5mm; Trigger life:5,000,000 times

Measurable insulating material: Metal, bakelite, wooden board, plastic, etc

High accuracy: The measurement accuracy ≤ 0.001mm, and the repeatability ≤ 0.001mm; The edge finder adopts a sturdy sealed shell, and the body is made of stainless steel with a ceramic ball head; It has good structural stability, excellent performance, and high measurement accuracy

No need for conductivity: The principle of conductivity is not required. The workpiece material and the machine tool spindle are not conductive and can also be measured

Applications: Widely used for positioning and measurement of CNC lathes,milling machine etc,exceeding the safety range may damage the probe and probe,and does not support the detection of insulation materials and insulated machine tools

Read more Read less

CNCTOPBAOS 2 in 1 CNC 4540 CNC Router Engraver Machine,20W Module&500W Motor Milling Cutting Engraving on Stainless Steel,Aluminum,Acrylic,MDF,Wood,Metal w/Touchscreen Offline Controller/Limit Switch

Milling Machines

Buy on Amazon Find on eBay

With Aluminum Table: Large Aluminum working table; Working area:430x390x90mm/16.93x15.39x3.54 inches; Overall Size:650x532x320mm/25.59x20.94x12.60 inches;The worktable has an accurate scale line,which is convenient to locate and measure the size of the engraving material

20W Engraving Module: Compressed spot 20W; Engraving accuracy: 0.01mm; Optical power: 5000mW ; Cutting: 0.11"-0.19"/3-5mm; Wavelength: 450±5nm; Input: DC 12V 3A; Adopting optical compression technology,with small light spot,good optical quality,high-speed engraving, good heat dissipation,and long service life

Supported Software and Computer Systems: 4540 CNC engraving machine is compatible with GRBL software/Candle and supports Windows XP/7/8/10.The GRBL Control Software in our package supports Nc, Ncc, Ngc, Tag and other G files

Wide Application: Can engrave on Stainless steel,Wood, MDF, Carbon fiber, PCB, PVC, Leather, Paper, Acrylic, Resin, Ceramic products, Food, Bamboo, Plastic, Nylon, Plywood, Brass, Plexiglass, Aluminum and so on; This machine can both carve and cut.It can cut 8-12mm/0.31"-0.47" MDF and 5mm/0.19" thick aluminum

Read more Read less

CNCTOPBAOS 4 Axis USB Mach3 Handwheel Controller Remote Hand Control CNC Handwheel Manual Pulse Generator for CNC Router Lathe Engraving Milling Machine (WHB04B-4)

Pulse Generators

Buy on Amazon Find on eBay

Product: 4 Axis USB Mach3 Handwheel,only supports mach3 software ; Model: WHB04B-4

Technology: 100PPR manual pulse generator support 10 macro function button

Axis select band switch to achieve the electronic hand wheel off and the corresponding X Y Z A each axis function of the choice of control. The choice of the step distance value is realized by selecting the switching value band, which is simple and convenient

LCD display: Display X Y Z A axis of the mechanical coordinates and workpiece coordinates. Show the spindle speed, the value of the feed rate. Dot matrix LCD with backlight. Axis selection, power band switch control

Application: For Windows: All Mach3 CNC system,milling machine,carving machine,wood machine and so on. Axis select band switch to achieve the electronic hand wheel off and the corresponding X Y Z A each axis function of the choice of control. The choice of the step distance value is realized by selecting the switching value band, which is simple and convenient

Read more Read less

CNCTOPBAOS 5 Axis DDCS Expert CNC Controller System,1000KHz Offline Stand Alone Servo/Stepper Motor Motion Control PLC Replace mach3 for CNC Router Milling Lathe Engraver Machine

Electrical Motor Controls

Buy on Amazon Find on eBay

Product: 5-Axis DDCS-Expert Controller; Model: DDCS-Expert; Support Axis: Max. 5 Axis; 1MHz 1000KHz output frequency for each axis; 7 inch full color display screen; resolution ratio: 1024x600, 40 operation keys

Introduction: The DDCS Expert numerical control system adopts the ARM and FPGA design framework,ARM controls the human-computer interface and code analysis and the FPGA provides the underlying algorithms and creates the control pulse; The internal operating system is Linux based

Main Features: 24 photoelectric isolated digital inputs, 21 photoelectric isolated digital outputs;Analog spindle control 0-10V spindle control, also support PWM Output; Compatible with standard G-code,support popular CAD/CAM software, such as ArtCam, MasterCam, ProE, JDSoft SurfMill, Aspire, Fusion 360 and so on

More Features: Magazine type: Supports multiple spindle mode, support straight Tool Magazine, gantry type Magazine, disk type magazine; Probe Mode: Supprt Floating Probe and Fixed Probe; Backlash compensation methods: direction gap compensation, radius gap compensation, length compensation;The control system can preview the processing path before machining, and it makes the system more steady, working smoothy and precise etc

Applications: The DDCS Expert can be used for many styles and types of CNC router,Engraver machines,Milling machine,Cutting machine,Lathes, CNC Routers,Pick and Place and Driling Machine, lathe and cutters are just a few examples

Read more Read less

CNCTOPBAOS 4 Axis CNC Motion Controller System,DDCSV3.1 Offline Stand Alone PLC,Servo Stepper Motor Driver Controller for CNC Router Lathe Milling Engraving Machine

Electrical Motor Controls

Buy on Amazon Find on eBay

Brief introduction: The DDCSV3.1 is a 4 axis motion controller,the highest output pulse per axis is 500KHz.This provides high control precision for stepper motors and servo motors.The DDCS operates as a stand alone system without the need of a computer

Compatible with G code set: 5 inches TFT Screen ; Resolution ratio: 480x272 ;16 photoelectric isolated digital inputs ; 3 photoelectric isolated digital outputs ; All operations are controlled by only 17 keys and it supports the FANUC with high universality to be compatible with G code set,with 4G USB flash disk support for G code file input,no size limited of the G-code file

Brief technical feature: 16 photoelectric isolated digital inputs,3 photoelectric isolated digital outputs ; Analog spindle control 0-10V spindle control can be modified as PWM output; ARM9 main control chip,FPGA core algorithm chip ; Jog function for each axis continuous, step, defined distance; Customer can define the distance ; Support NPN type limited switch

Power requirements: The Power Supply for the controller is 24VDC,DDCSV3.1 needs two power supplies,main power is for system,IO port is for input and output ports, Current is not less than 1A;Because of the IO power,system can supply the power for all IO ports.So no need the external power supply for IO port anymore

Applications: The DDCV3.1 can be used for many styles and types of CNC machines. Lathes, CNC Routers,Pick&Place and Milling Machine,lathe machine and cutters are just a few examples

Read more Read less

CNCTOPBAOS 65mm Lathe Center Morse Taper 2 Live Center Movable MT2 Tailstock with 4pcs Replaceable Heads For CNC 4h Axis Engraving Machine Woodworking

Buy on Amazon Find on eBay

Package include: 1x 65mm MT2 movable tailstock with 4 replaceable heads; Top tip: Activity type; Tail frame axial locking key

Specifications: Tailstock type: MT2 Morse 2 taper; Total height: 115mm; Center height: 65mm; Stretching distance: 50mm; Net weight: 2.1 kg / 4.6 LB

High Quality Materials: base is made of aluminum alloy, and the head is made of 40Gr steel, with good concentricity and high precision and good anti vibration performance.The anti rust coating process is durable and has a long service life

Scope of Application: Widely used in the fourth axis of the engraving machine A axis, rotary axis, CNC indexing head; Fit for CNC Router Machine engraving machining center milling lathe machine.For machining 3D products such as mannequins and other 3D products

Advantages: Adopting a rotating anti slip handle, the operation is more convenient and labor-saving, suitable for various milling, engraving, drilling, and cutting processes, and can work independently with indexing; The tailstock is equipped with a locking device to prevent tailstock movement

Read more Read less
