The Complete Guide to Buying Toggle Clamps
Introduction
Toggle clamps are an essential tool for any workshop or manufacturing facility. These handy devices allow you to quickly and easily clamp objects in place, making it easier to work on them and preventing them from moving around. However, with so many different toggle clamp options available on the market, it can be difficult to know which one is right for your needs. In this article, we'll provide some tips to help you choose the right toggle clamp for your application.
Consider Your Clamping Needs
The first thing you should do when choosing a toggle clamp is to consider your specific clamping needs. This will help you narrow down your options and choose a clamp that is well-suited to your application. For example, if you need a clamp that can hold a lot of weight, you'll want to choose a heavy-duty clamp that is capable of providing the necessary holding force. On the other hand, if you only need a clamp for light-duty applications, a smaller, lighter-weight clamp may be more appropriate.
Look at the Clamp's Holding Capacity
Another important factor to consider when choosing a toggle clamp is the clamp's holding capacity. This is the maximum amount of weight that the clamp can hold, and it's important to choose a clamp with a holding capacity that is appropriate for your needs. For example, if you're working with heavy objects, you'll need a clamp with a high holding capacity. On the other hand, if you're working with smaller, lighter objects, a clamp with a lower holding capacity may be sufficient.
Choose the Right Clamping Force
In addition to the clamp's holding capacity, you'll also want to consider the clamping force. This is the amount of force that the clamp applies to an object to hold it in place. The right clamping force will depend on the specific materials you're working with and the level of precision you need. For example, if you're working with delicate materials that could be damaged by excessive force, you'll want to choose a clamp with a lower clamping force. On the other hand, if you need a strong, secure hold, a clamp with a higher clamping force may be more appropriate.
Consider the Clamp's Size and Shape
When choosing a toggle clamp, it's also important to consider the size and shape of the clamp. This will help you ensure that the clamp will fit in the space where you plan to use it and that it will be able to hold the objects you're working with. For example, if you're working in a tight space, you'll want to choose a compact clamp that won't take up too much room. On the other hand, if you're working with large, heavy objects, you'll need a larger, sturdier clamp.
Conclusion
Choosing the right toggle clamp for your needs can make your work easier and more efficient. By considering your specific clamping needs, looking at the clamp's holding capacity and clamping force, and choosing the right size and shape, you can find a toggle clamp that will help you get the job done right. With the right toggle clamp, you can clamp objects in place quickly and easily, making it easier to work on them and ensuring that they stay securely in place.
Frequently Asked Questions (FAQs)
1. What are toggle clamps used for?
Toggle clamps are used to securely locate and hold components or parts in position, often as part of a production process. These clamps have the ability to lock in position securely and can be quickly turned on and off by an operator.
2. What can I use instead of a toggle clamp?
An alternative choice to a toggle clamp is using Hex Head Spindle Assemblies.
3. What are the disadvantages of toggle clamps?
Traditional toggle clamps have a few disadvantages, such as time-consuming adjustment of the clamping range and limited options to vary the clamping force. However, newer toggle clamps, like BESSEY toggle clamps, have addressed these issues by incorporating quick adjustment and varying clamping force options.
4. What is one advantage of manual toggle clamps?
One advantage of manual toggle clamps is that they provide a clamping force that ensures the workpiece remains stable and prevents any movement or slippage during various operations like machining, cutting, or drilling.
5. What are the different types of toggle locks?

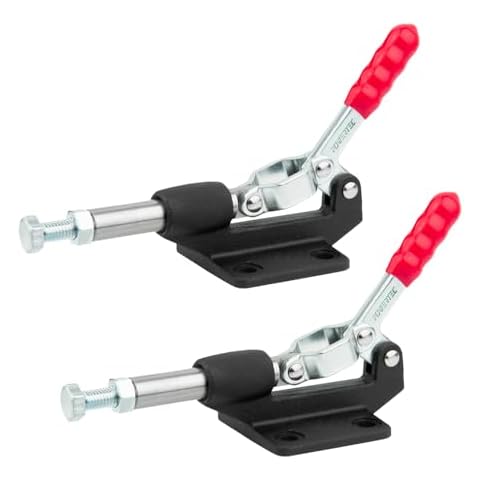

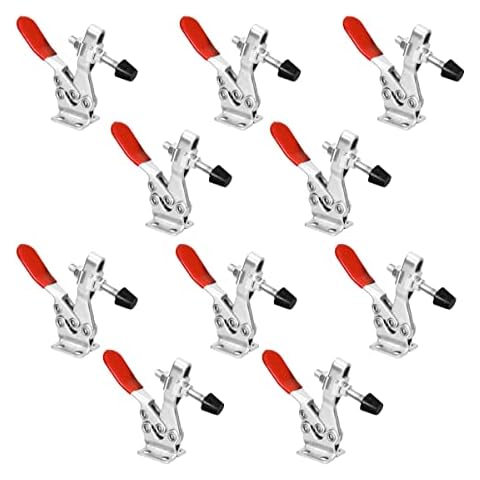

There are various types of toggle clamps available, including vertical, horizontal, plunger, swing, push-pull, hook and latch, cam action, and plier action. Some can be operated manually, while others can be powered. The most common type is the vertical or vertical action toggle clamp.
6. Do you apply pressure on the panel during toggle clamping?
During toggle clamping, the securing bar ensures that the objects won't move, while the lever system applies enough pressure on the object to keep it steady for work.
7. What are the four basic types of mechanical toggle clamps?
The four basic types of mechanical toggle clamps are vertical, horizontal, plunger, and swing. Additionally, there are other types like push-pull, hook and latch, cam action, and plier action available. Some toggle clamps can be operated manually, while others can be powered.
8. What is the difference between toggle clamp and RAM clamp?
Toggle clamping is commonly used for high-speed injection molding, while ram clamping is recommended for precision parts. The decision between toggle clamping and ram clamping can also be influenced by factors like the size of the mold and the ejector mechanism.
9. What is the holding capacity of a toggle clamp?
The holding capacity of a toggle clamp refers to its ability to resist external force when it is in the locked position without getting damaged or deformed. In simpler terms, the holding capacity represents the maximum force the clamp can withstand from your workpiece.
10. What is the difference between vertical and horizontal toggle clamps?
The difference between vertical and horizontal toggle clamps lies in the orientation of the handle. Vertical toggle clamps have a vertical handle, while horizontal toggle clamps have a horizontal handle. Both types apply a clamping force when the handle is engaged, but the handle's orientation is different.
Editor's Notes
During our toggle clamp research, we found 24 toggle clamp products and shortlisted 10 quality products. We collected and analyzed 30,511 customer reviews through our big data system to write the toggle clamps list. We found that most customers choose toggle clamps with an average price of $13.47.
The toggle clamps are available for purchase. We have researched hundreds of brands and picked the top brands of toggle clamps, including POWERTEC, Vicuna R, E-TING, CUKAYO, SyunsXoon. The seller of top 1 product has received honest feedback from 384 consumers with an average rating of 4.7.
