When purchasing a product, price is the consumer's primary concern. At present, Serial Wombat has 10 products for sale. Serial Wombat products range in price from $2.99 to $14.99, and the average price of all the products is about $10.19. It's affordable for most consumers, and you can feel free to pick your favorite products.

We found that most of the Serial Wombat products are manufactured by Broadwell Consulting Inc and Broadwell Consulting Inc.. The manufacturers provide Serial Wombat with a steady supply of products, and they have a good cooperative relationship with each other.

You can confidently purchase Serial Wombat products from the seller Broadwell Consulting Inc. The brand holds an average rating of 5, testifying to its excellent reputation.

Serial Wombat Best Sellers

Last Updated: Jan 11, 2025

I2C Smart I/O Expander and A/D Converter - Serial Wombat 4B - 4 Pack. Drive Servos, switches, quadrature encoders, UART/I2C Bridge Over I2C Compatible with Arduino

Single Board Computers Raspberry Pi Starter Kits

Buy on Amazon Find on eBay

Easily add a few more I/O or A/D channels to your project through I2C

Do complex tasks with a few simple calls to the API available for download through the IDE Library Manager

Many support videos and extensive documentation available online. See the User Guide pdf in the "Product guides and documents" at the bottom of this lisiting

3 Input/Output and 1 Input Only pin on each chip. Each pin can be assigned a specific function such as Servo, Quadrature Encoder, A/D conversion, UART Bridge

Use all 4 chips together, or in 4 different projects. 100nF capacitors included. Uncut decal strip with 8 decals included. Upgradable Open Source Firmware available on GitHub.

I2C / UART Smart I/O GPIO and Analog Expander for Arduino (Serial Wombat 18AB, Unassembled Kit, 2 Pack, Black Label)

Single Board Computers Raspberry Pi Starter Kits

Buy on Amazon Find on eBay

Add 18 GPIO and/or 9 A/D channels over I2C or UART

Do complex tasks with a few simple calls to the API available for download through the IDE Library Manager for Arduino

Each pin is configurable for Servo, Quadrature Encoder, A/D conversion, UART Bridge, Touch, LCD, Matrix Keypad, and many more modes

Included PCBs allow the chips to be converted to modules (soldering required)

Required Capacitors and resistors, chip decals and reference card included

In depth documentation and tutorial videos online. User Guide available in "Product guides and documents" section below

Red Label chips go through an additional calibration step during programming to improve accuracy

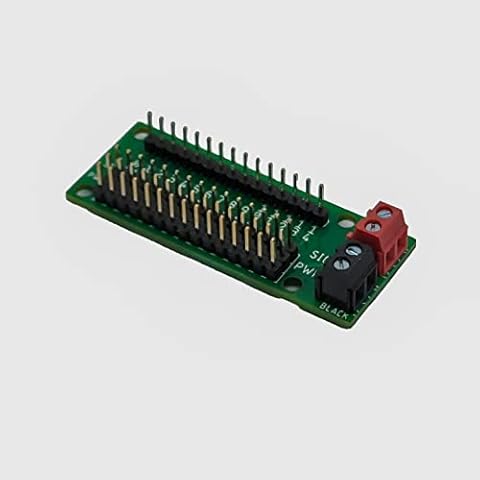

Serial Wombat PCB_0014 Servo Breakout Board 2-Pack

Single Board Computers Raspberry Pi Starter Kits

Buy on Amazon Find on eBay

Allows easy connection of up to 15 hobby servos to a Single board computer such as a Serial Wombat chip, Arduino or Raspberry Pi

No on-board electronics. Signal generation is performed by the single board computer (not included)

Screw type terminal blocks allow easy connection of a power supply wires (16-24 ga) (block part number DIBO DB125-3.81-2P-RD-S)

Mounting holes and dimensions printed on the rear silkscreen allow easy integration into a project

Fully Assembled

2 Pack

Fully Assembled Serial Wombat 18AB Board - Real Time Coprocessor and I2C /UART IO Expander for Arduino or Raspberry Pi (1 Pack, Red Label)

Single Board Computers Raspberry Pi Starter Kits

Buy on Amazon Find on eBay

Includes Fully Assembled PCB with Red-Label calibrated Serial Wombat 18AB chip, decal strip and pinout cards

Two QWICC / STEMMA QT connectors

Jumper pins to allow control of the Serial Wombat chip over UART or I2C (address 0x6B by default, configurable with a solder-in-place resistor)

Connector for standard 5V FTDI cable for control from a PC or Raspberry PI USB port. On board 3.3V LDO regulator provides 5V to 3.3V power conversion.

Arduino C++, MicroPython, CPython and C# libararies available. Automatic code generation available from the WombatPanel windows application

Dozens of Tutorial Videos and Extensive documentation online. User Guide available in "Product guides and documents" section below

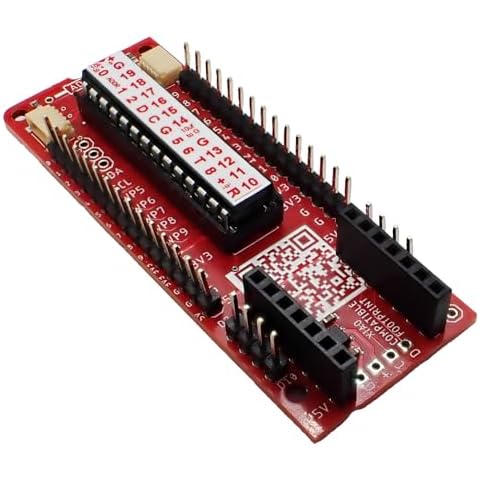

Xiao Expansion and Coprocessor Board with Serial Wombat 18AB Chip PCB_0023 for Seeed Seeeduino Xiao

Single Board Computers Raspberry Pi Starter Kits

Buy on Amazon Find on eBay

Expansion Board compatible with Seeeduino Xiao modules (Xiao module not included)

Fully assembled board Includes pre-installed, pre-programmed Serial Wombat 18AB Smart I/O expander and embedded systems coprocessor

Two QWIIC / Stemma connectors for easy connection via I2C

Adds 18 Intellegent I/O pins capable of A/D conversion, PWM, Servo control, frequency output, rotary encoder reading, matrix keypad, button debouncing, WS2812B driving, Capacitive Touch, UART send and receive, and many more modes

Provides access to the Xiao's I/O pins in addition to the I/O on the Serial Wombat Chip

Serial Wombat firmware is open source, customizable and upgradable. The PCB design is published as open source hardware.

I2C Bus Breakout Board 8x4 Serial Wombat PCB_0012 for IIC Expansion or Power Bus Using Jumper Wires 4-Pack

Single Board Computers Raspberry Pi Starter Kits

Buy on Amazon Find on eBay

4-Pack of fully assembled boards

Connects up to 8 I2C devices to the same bus

Board contains no electronics

8x4 configuration of 0.1" (2.54mm) pins , with rows of 8 connected

Hole dimensions and board dimensions printed on the silkscreen

Pads for addition of optional 0603 pull-up resistors ( 2200 ohm resistors included, but not mounted)

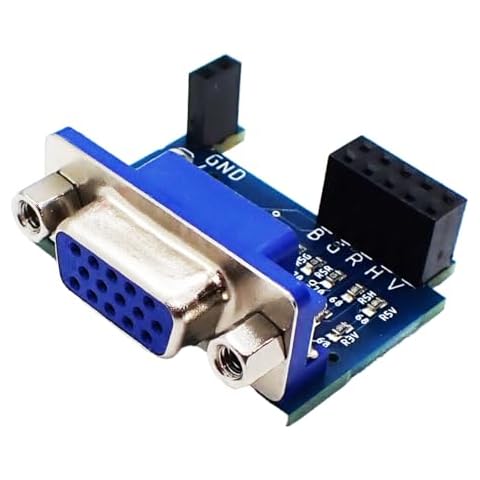

VGA Breakout Board with Resistors for Serial Wombat or Arduino PCB_024

Single Board Computers Raspberry Pi Starter Kits

Buy on Amazon Find on eBay

Board Contains No Electronics

Board provides Connections to VSync, HSync, R G and B VGA pins through appropriate resistors, and ground to appropriate VGA pins

3.3V and 5V input options

Physical design allows direct connection to SW18AB boards with downward soldered pins

Solder jumpers on the bottom of the board allow bridging of RGB to a single input for White/Black operation from one color pin

Female DB15 connector and 0.1" female header connectors

WS2811 IC Breakout Board, 2X WS2811 Chips per Board - no RGB LEDs - Serial Wombat PCB0027, 3Pack, Compatible with Arduino FastLED

Single Board Computers Raspberry Pi Starter Kits

Buy on Amazon Find on eBay

3 Pack of Boards with 2 ICs each. Each IC has 3 30mA low side PWM drivers (R,G,B channels)

Daisy chain multiple boards for nearly limitless number of outputs

Full data available in WS2811C LED datasheet

Header pins not soldered or included due to the wide range of applications for this board.

Terminal Block to Header, 4 Position. Serial Wombat PCB_0025, 4 Pack

Ground Circuit Terminal Blocks

Buy on Amazon Find on eBay

4 Position Terminal Block to Male and Female 2.54mm (0.1") headers

Easily connect loose wires to Uno, Node MCU, and other boards

Convenient for connecting motors to H-Bridge boards with 2.54mm pins

Works great with Serial Wombat 18AB boards or Serial Wombat 4B Breakout Boards

20 mil Traces on top and bottom of PCB

4 Pack

No Electronics - Simply a connector board

Convenient for connecting leaded components to microcontroller modules

Capacitive Touch PCB for use with Serial Wombat 18AB chip 2-Pack

Single Board Computers Raspberry Pi Starter Kits

Buy on Amazon Find on eBay

Provides 9 touch pads

Compatible with Serial Wombat 18AB chip's cap-touch pin mode

All dimensions are directly documented on the back-side silkscreen

Finger joint edges allow easy integration of the PCB into a laser-cut project box

Templates for laser cutting and button overlays available online

Includes through-hole and right-angle headers

2 Pack
