Frequently Asked Questions (FAQs)
1. What is the difference between rope Seal and mechanical Seal?
The main difference between a rope seal and a mechanical seal lies in their functionality and leak prevention. Rope seals are designed to be serviceable in the field without dismantling the pump but may leak water from the packing box. On the other hand, mechanical seals do not leak any water but are more prone to breakage from excessive heat and require pump dismantling for replacement.

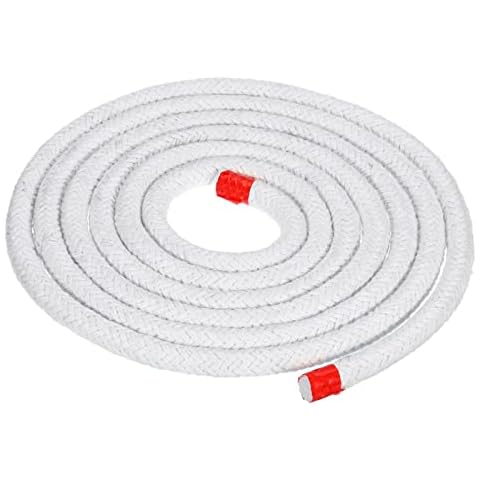

2. What is a rope gasket used for?
Rope gaskets, especially high-temperature ropes, are commonly used as gaskets in applications that involve high heat, such as gas fireplaces, boilers, stoves, and similar appliances. They are also utilized as seals for furnace doors, gas fireplaces, and in emissions control systems to reduce harmful substances emitted into the environment.
3. What can you use to seal rope?
To seal rope, especially synthetic rope, the ends can be heat-sealed using a heat source like a lighter or heat gun. This process involves melting and sealing the ends of the rope strands, which prevents fraying and adds extra security.
4. What are the three types of mechanical seals?
The three main types of mechanical seals are balanced and unbalanced seals, pusher and non-pusher seals, and single and multi-spring seals. Each type has its advantages and disadvantages, with balanced seals suitable for high pressure, unbalanced seals for low pressure, and pusher and non-pusher seals differing in their design mechanism.
5. What size rope seal do I need?
To determine the size of rope seal needed, measure the width and depth of the groove in the metal door where the rope seal will sit. For example, if the groove measures 12mm wide and 10mm deep, a 12mm rope seal would be the appropriate choice.
6. What are the 3 types of gasket?
The three main types of gaskets are metallic gaskets, non-metallic gaskets, and composite gaskets. Metallic gaskets, also known as ring gaskets or RTJ gaskets, are made of metal. Non-metallic gaskets are soft gaskets that can be compressed easily with low tension bolting. Composite gaskets are a combination of different materials.
