Frequently Asked Questions (FAQs)
1. What are signs of a bad voltage regulator on an ATV?
Signs of a bad voltage regulator on an ATV include a decrease in performance, such as slower acceleration, which is often mistaken for an engine issue. Additionally, the ATV lights may start to dim or flicker, indicating a potential problem with the voltage regulator.
2. What are the three basic types of voltage regulators?
The three basic types of voltage regulators are step-up, step-down, and inverter voltage regulators. Each type serves a specific purpose in regulating voltage for different applications.
3. Are all motorcycle voltage regulators the same?

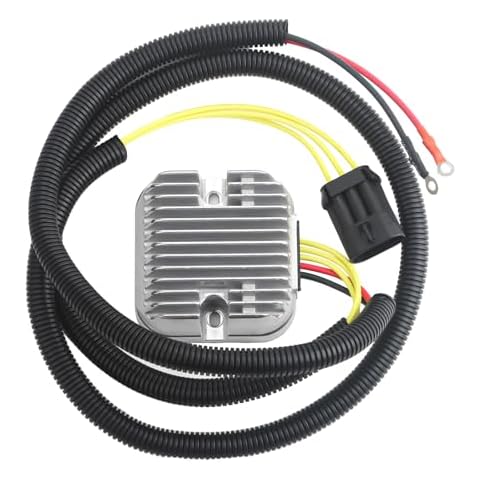

While there may be some variations in shape and wire colors, most motorcycles have a three-phase, 12V, magnetic alternator and use similar regulator/rectifier (reg/rec) units. These units work in the same way and are generally interchangeable, but it's always best to consult the manufacturer's specifications for compatibility.
4. How do I know if my stator or regulator is bad?
Some common signs of a bad stator or regulator include weak or zero spark, dim or dead bike lights, dead batteries or electric components, and lagging acceleration. If you experience any of these issues, it may indicate a problem with the stator or regulator.
5. How do you size a voltage regulator?
To size a voltage regulator, determine the input voltage (V) and the rated amperage (A) of the equipment or circuit you want to protect. Multiply the voltage by the current and divide by 1,000 to obtain the size rating in kVA.
6. What is the most common voltage regulator?
The most common type of voltage regulator is the linear regulator. It uses a series element, like a transistor or resistor, to drop excess input voltage and provide a fixed output voltage. Linear regulators are easy to use, have low noise, and can respond quickly to load changes.
7. How do I know what voltage regulator I need?
To select a voltage regulator, consider using a linear regulator if the input voltage is higher than the output. If using a linear regulator wastes too much power, a buck switching regulator can be used. If you need an output voltage higher than the input, a boost switching regulator is suitable. The choice depends on the specific requirements of your system.
8. Is higher or lower voltage regulation better?
Lower voltage regulation is better as it indicates better stability in maintaining a constant secondary voltage despite variation in load current. The lower the percentage, the more stable the secondary voltage and the better the regulation provided by the power transformer.
