Frequently Asked Questions (FAQs)
1. What is the purpose of the air bleed valve?
The air bleed valve, also known as the air release valve, is used to release trapped air from a fluid system, such as a heat exchanger. It helps remove air that may collect in the system where the high point is above the system fill port.
2. What do low speed air bleeds do?
Low speed air bleeds, along with jetting, allow for fine-tuning of the fuel curve in a carburetor. Adjusting the size of the high or low-speed air bleeds can shape the fuel curve, while jetting shifts the entire curve. Together, air-bleed tuning and jetting enable optimal tuning of the fuel curve.
3. Is there a bleeder valve?

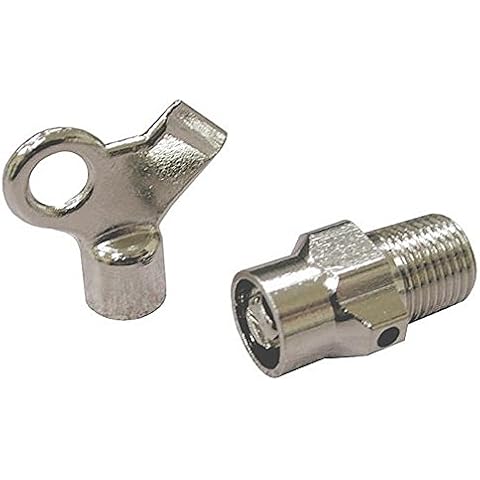

Yes, there is a bleeder valve commonly found on radiators. It is usually located at the top or opposite end of the radiator. The bleeder valve has a spherical shape with notches in the middle and is used to drain the radiator and release trapped air by inserting a bleed key or screwdriver.
4. How do I know if my carburetor has too much air?
One indication of a carburetor with too much air is hesitation when accelerating. This is usually caused by a lean fuel mixture, where there is an imbalance of too much air and not enough fuel.
5. What causes blowback through the carburetor?
Backfiring through the carburetor, also known as spitting or coughing, is commonly caused by a slightly lean air/fuel mixture in the morning. This can occur when the carburetor's air/fuel mixture is too lean, resulting in blowback through the carburetor.
6. Where is a bleed valve needed?
A bleed valve is typically installed between the isolation valve and the pressure-relief device in a system. Its purpose is to enable safe depressurization before performing maintenance. Additionally, the bleed valve can prevent pressure build-up between the pressure-relief device and the closed outlet isolation valve.
7. What happens if the main air bleed becomes restricted?
If the main air bleed of a carburetor becomes restricted or clogged, the fuel/air mixture would become excessively rich. This is because more suction would act on the fuel in the discharge nozzle, and less air would be introduced with the fuel.
8. How do you seal a bleeder valve?
To seal a bleeder valve, it is recommended to clean the valve with soapy water to remove any brake fluid or grease. Then, apply a small amount of thread sealant evenly to the threaded portion of the bleeder screw using a brush cap applicator.
9. What are the different types of bleeder valves?
There are three main types of bleeder valves: continuous venting valves, startup venting valves, and combined venting valves. Continuous venting valves are used to remove air that accumulates in systems during operation. Startup venting valves help with the initial removal of air during system startup. Combined venting valves have both continuous and startup venting capabilities.
